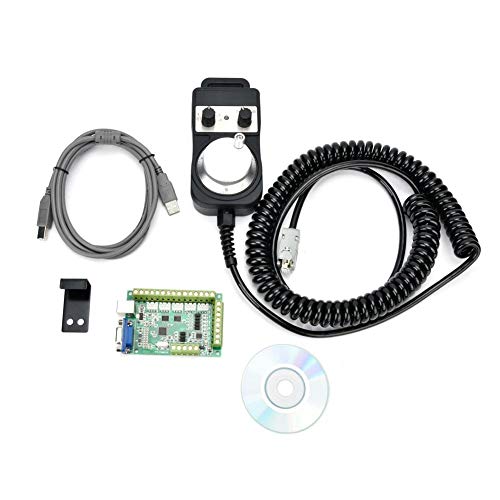

5-Axis CNC Motion Controller - MACH3 USB Interface Board with Emergency Stop Handwheel for Woodworking, Metal Cutting & Engraving Machines
Free shipping on all orders over $50
7-15 days international
20 people viewing this product right now!
30-day free returns
Secure checkout
24589776
Description
Features: Support Various Versions Of Mach3 Software And Support The Latest Version. Wide External Voltage Input, 12-24V, And AntiReverse Function. All Input Signals Are Isolated By OptocouplerIsolation, Which Can Be Connected To Emergency Stop, Tool Setting, Limit Position,0 Return, Etc. To Ensure Computer Security. The Input Can Be Connected To A Mechanical Switch Or A Proximity Switch (To Be Normally Opened With Npn). Provide 4 Output Port (5V Level), Which Can Be Connected With Photocoupler Relay Module To Control Water Cooling, Spray And So On.&Nbsp; Maximum 100Khz Output Per Axle, Can Be Connected To Common Anode Or Common Cathode, Input Level Is 5V, Stepper With Optocoupler Input Or Servo Motor Driver (Pulse + Direction). Provide 5-Axle Interface Cable Socket (Xh2.54) For Easy Connection. Provide An Electronic Handwheel Interface,The Board Prints All Port Names, At A Glance. Handwheel Output Mode: Open Collector, Voltage Output, Complementary Output, Long Line Drive. Specification: Input Voltage:12~24V Handwheel Working Voltage:5V Fit For Windows Xp Fit For Windows 7 Fit For Windows 8 Fit For Windows 10 Fit For 64 Bit System And Laptop,Tablet Package List: 1 X Board 1 X Usb Cord 1 X Handwheel Without Emergency Stop 1 X Hook 1 X Optical Disc
Features
Support Various Versions Of Mach3 Software And Support The Latest Version.All Input Signals Are Isolated By Optical Diaphragm, Which Can Be Connected To Emergency Stop, Tool Setting, Limit Position, 0 Return, Etc. To Ensure Computer Security. The Input Can Be Connected To A Mechanical Switch Or A Proximity Switch (To Be Normal
OneWay OptocouplerIsolated 0-10V Analog Voltage Output Can Control The Inverter Input From 0-10V Analog Voltage To Control The Spindle Speed.Provide An Electronic Handwheel Interface,The Board Prints All Port Names, At A Glance.Provide 5-Axle Interface Cable Socket (Xh2.54) For Easy Connection.
Handwheel Applications: Cnc Machine Tools, Printing Machinery And Other 0 Correction And Signal Segmentation.Handwheel Output Mode: Open Collector, Voltage Output, Complementary Output, Long Line Drive.Maximum 100Khz Output Per Axle, Can Be Connected To Common Anode Or Common Cathode, Input Level Is 5V, Stepper With Optocoupler Input Or Servo Motor Driver (Pulse + Direction).
Pwm Output (5V Level) Is Provided, Which Can Be Connected To The Spindle Governor Controlled By Pwm.
Provide 4 Output Port (5V Level), Which Can Be Connected With Photocoupler Relay Module To Control Water Cooling, Spray And So On.
